Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: AIM
  • Model Number: N35 N40 N42 N48 N52
  • Type: Permanent
  • Composite: Neodymium Magnet
  • Shape: custom
  • Application: Industrial Magnet
  • Product Name: M5 Screw Pot / Cup Magnet with Countersunk hole
  • sample: Accepet
  • Testing: Salt Spray Testing
  • work Temperature: Max 80℃
  • Accurate tolerance: ±0.1mm
  • Density: 7.45g/mm3
  • Inspection: Double QC checking
  • Certificate: ISO REACH ROHS
  • coating: Ni or customized
  • Magnetism direction: Axially Magnetized

Packaging & Delivery

Packaging Details Stadard air packing, Box+Foam+Metal.

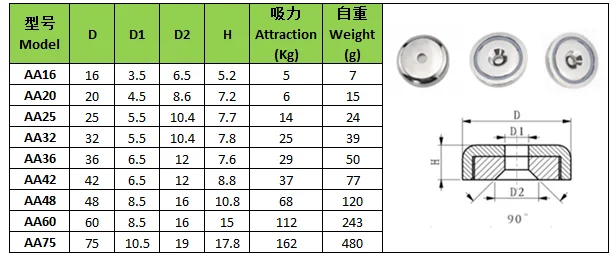

D48mm Neodymium Countersunk Pot/Cup MagnetWith Countersunk Holes,Screws, Hooks

Company Information

AIM Magnet

Shenzhen AIM Magnet Co.,Ltd was found in 2006 which is the role-model enterprise among magnets manufacturing industries in China. We own one-stop complete industrial chain from raw material blank, cutting, electroplating and standard packing. With the background of the China's First Rare Earth Research Institute- Hunan Rare Earth Metals Institute Experts for technical support, professional design can be provided, high performance NdFeB magnets and various permanent magnetic products can be also produced and one-stop technical solutions can be offered.

Our Team

Our Customer



Product Description



Production Flow



Product dispaly





Coating

Surface

Coating

Thickness (Microns)

Color

Resistance

Passivation



0-1

Silver Grey

Temporary Protection

Nickel

Ni+Ni

10-20

Bright Silver

Excellent against Humidity

Ni+Cu+Ni

Zinc

Zn

8-20

Bright Blue

Good Against Salt Spray

C-Zn

Shinny Color

Excellent Against Salt Spray

Tin

Ni+Cu+Sn

15-20

Silver

Superior Against Humidity

Gold

Ni+Cu+Au

10-20

Gold

Superior Against Humidity

Copper

Ni+Cu

10-20

Gold

Temporary Protection

Epoxy

Epoxy

15-25

Black, Red, Grey

Excellent Against Humidity & Salt Spray

Ni+Cu+Epoxy

Zn+Epoxy



Packaging & Shipping



FAQ

1.Why are chosen us?

- We are a professional magnet manufacturer since 2006. Our plating factory is the benchmark in the Shenzhen

   NdFeB industry.

-  No returned goods for five years in Europe market.

- We provide magnets for a dozen of Fortune Global 500 enterprises such as Apple, Samsung, Lenovo etc.

- In Europe market, 80% permanent magnets used for range hood are from AIM Magnet Co., Ltd.

Our company is the main supplier of American top wine box.

With rich exporting experiences with neodymium magnets, we build supply chain to offer neodymium magnets

   with professional service.

2. How to control the magnetic property?

   - Hight stander raw material

3. How to control the tolerance?

- 1. before ginding and cuting, we inspection the black product tolerance.
- 2. before and after coating, we will inspection the tolerance by AQL standard
- 3. before delivery, will inspection the tolerance by AQL standard

4. How to guarantee the consistancy?

- 1. the sintering control will make sure the perfect consistancy.
- 2. we cut magnet by multi-wire sawing machine to guarantee the dimension consistancy.

5. How to control coating ?

- 1. we have a coatIng factory
- 2. after coating, first inspection by visual, and second is salt spray test, nickel 48-72 hours, zinc 24-48 hours

6. How to control the packing?

- 1. standard packing,
- 2. the cartons must can be bear a man's weight.
- 3. the cartons must be well after fall down test from 1m high position. and the inner packing must not change position
